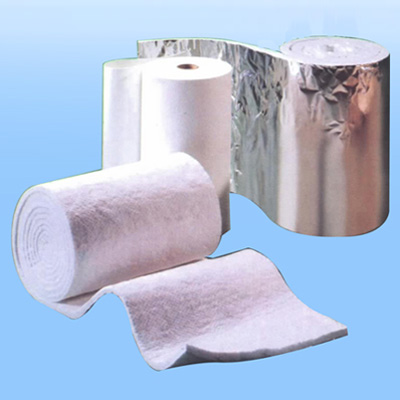

CF005 Ceramc fiber blanket

Producing technology

Ceramic fiber blanket is made up of the corresponding ceramic fiber (such as COM, STD, HA, HP, AND HZ fiber) which is produced by blowing technology, consists of such production courses as needling, heat-shaped, cutting into proper length and width, bundling up, etc.
Each type of blanket has fine tensile strength except for the fine properties of the corresponding fiber, at the same time, it has a well distributed, composition and construction, and a flat face.
Blankets of different bulk weight and thickness provide a wide range for our customer's choices, so they can design the best insulation construction and can get fine benefits.

Item			COM		STD		HP		HA		HZ
Specification temp ( ^oC )			1260		1260		1260		1400		1400
Working temp ( ^oC )			< 1000		1000		1100		1200		1350
Color			White		White		White		White		White
Density (kg/m3)			96 128		96 128		96 128		128 160		128 160
Rate of liner (%) (24h.128kg/m3)			-4(1000 ^oC )		-3(1000 ^oC )		-3(1100 ^oC )		-3(1200 ^oC )		-3(1350 ^oC )
Rate of thermal conductivity (W/m. K) (128kg/m3)			0.09(400 ^oC ) 0.16(800 ^oC )		0.09(400 ^oC ) 0.16(800 ^oC ) 0.20(1000 ^oC )		0.09(400 ^oC ) 0.16(800 ^oC ) 0.20(1000 ^oC )		0.12(600 ^oC ) 0.20(1000 ^oC )		0.15(800 ^oC ) 0.20(1000 ^oC )
Tensile Strength (MPa) (128kg/m3)			0.04		0.04		0.04		0.04		0.04
Chemical composition(%)	A1 2 O 3		44		46		47-49		52-55		39-40
	A1 2 O 3 +SiO 2		96		97		96		99		-
	A1 2 O 3 +SiO 2 +ZrO 2		-		-		-		-		99
	ZrO2		-		-		-		-		15-17
		Fe 2 O 3		< 1.2		< 1.0		0.2		0.2		0.2
		Na 2 O-K 2 O		≤0.5		≤0.5		0.2		0.2		0.2

Specification (mm):

7200x610x12.5-50. 3600x610x25-50mm;

other made according to customer's requirement.
