non asbestos sheet, asbestos joint non sheet

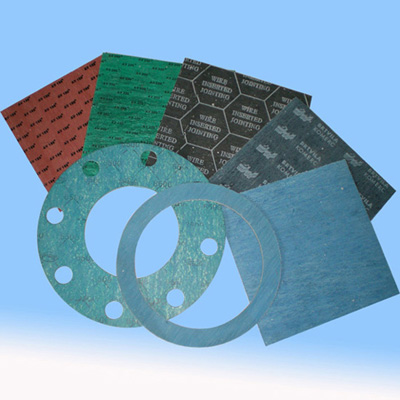

CSF Non asbestos compressed sheet

Item	WXB150	WXB200	WXB300		WXB350		WXB400		WXB450
Tensilestrength	≥ 5 Mpa	≥6 Mpa	≥9 Mpa		≥ 12 Mpa		>= 15 Mpa		>= 19 Mpa
Aging coefficient	≥0.9	≥0.9	≥ 0.9		≥ 0.9		>= 0.9		>= 0.9
Loss on ignition	≤30%	≤ 30%	≤ 30%		≤ 30%		≤28%		≤28%
compressibility	12+-5%	12+-5%	12+-5%		12+-5%		12+-5%		12+-5%
rebound degree	≥35%	≥ 35%	≥40%		≥40%		≥45%		≥45%
Density	1.6-2.0 g/cm;	1.6-2.0 g/cm;	1.6-2.0 g/cm;		1.6-2.0 g/cm;		1.6-2.0 g/cm;		1.6-2.0 g/cm;
Stress relaxation	≤50%	≤ 50%	≤ 50%		≤50%		≤50%		≤ 50%
Flexibility	Not easy to break
Scope of application	Highest temperature 150oC,highest pressure 0.8Mpa	Highest temperature 200oC,highest pressure 1.5Mpa		Highest temperature 300oC,highest pressure 3.0Mpa		Highest temperature 350oC,highest pressure 4Mpa		Highest temperature 400oC,highest pressure 5.0Mpa		Highest temperature 450oC,highest pressure 6.0Mpa
	suitable as a jointing medium on kinds of installations at temperature 450°C,pressure 6Mpa.

thickness: 0.5-5.0mm
Max. length*width:4100*1500mm, 3800*1300mm, 1270mmx3810mm;
Construction: Manufactured from kevlar fiber brounded with beat-fresisting rubber fillers and compressed into sheet from.
