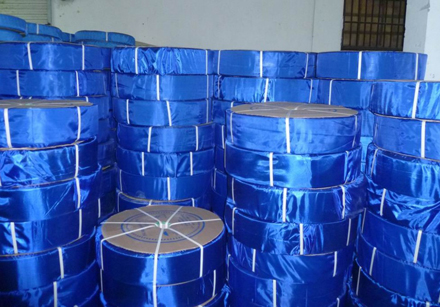

    PVC Layflat Hose

Specifications
Item Number Size(") Inner diameter(MM)
LD-002 1 25±1.0
LD-003 1 25±1.0
LD-102 1 25±1.0
LD-207B 1 25±1.0
LD-207/9 1 25±1.0
LD-205/6 1 25±1.0
LD-208 1 25±1.0
LD-002 1.2 30±1.0
LD-003 1.2 30±1.0
LD-102 1.2 30±1.0
LD-207B 1.2 30±1.0
LD-207/9 1.2 30±1.0
LD-205/6 1.2 30±1.0
LD-208 1.2 30±1.0
LD-002 1.25 32±1.0
LD-003 1.25 32±1.0
LD-102 1.25 32±1.0
LD-207B 1.25 32±1.0
LD-207/9 1.25 32±1.0
LD-205/6 1.25 32±1.0
LD-208 1.25 32±1.0
LD-002 1.4 35±1.0
LD-003 1.4 35±1.0
LD-102 1.4 35±1.0
LD-207B 1.4 35±1.0
LD-207/9 1.4 35±1.0
LD-205/6 1.4 35±1.0
LD-208 1.4 35±1.0
LD-002 1.5 38±1.0
LD-003 1.5 38±1.0
LD-102 1.5 38±1.0
LD-207B 1.5 38±1.0
LD-207/9 1.5 38±1.0
LD-205/6 1.5 38±1.0
LD-208 1.5 38±1.0
LD-002 2 50±1.2
LD-003 2 50±1.2
LD-102 2 50±1.2
LD-207B 2 50±1.2
LD-207/9 2 50±1.2
LD-205/6 2 50±1.2
LD-208 2 50±1.2
LD-002 2.5 65±1.2
LD-003 2.5 65±1.2
LD-102 2.5 65±1.2
LD-207B 2.5 65±1.2
LD-207/9 2.5 65±1.2
LD-205/6 2.5 65±1.2
LD-208 2.5 65±1.2
LD-002 3 75±1.5
LD-003 3 75±1.5
LD-102 3 75±1.5
LD-207B 3 75±1.5
LD-207/9 3 75±1.5
LD-205/6 3 75±1.5
LD-208 3 75±1.5
LD-002 3.5 90±1.5
LD-003 3.5 90±1.5
LD-102 3.5 90±1.5
LD-207B 3.5 90±1.5
LD-207/9 3.5 90±1.5
LD-205/6 3.5 90±1.5
LD-208 3.5 90±1.5
LD-002 4 100±2.0
LD-003 4 100±2.0
LD-102 4 100±2.0
LD-207B 4 100±2.0
LD-207/9 4 100±2.0
LD-205/6 4 100±2.0
LD-208 4 100±2.0
LD-002 4.5 110±2.0
LD-003 4.5 110±2.0
LD-102 4.5 110±2.0
LD-207B 4.5 110±2.0
LD-207/9 4.5 110±2.0
LD-205/6 4.5 110±2.0
LD-208 4.5 110±2.0
LD-002 5 125±2.3
LD-003 5 125±2.3
LD-102 5 125±2.3
LD-207B 5 125±2.3
LD-207/9 5 125±2.3
LD-205/6 5 125±2.3
LD-208 5 125±2.3
LD-002 6 150±2.5
LD-003 6 150±2.5
LD-102 6 150±2.5
LD-207B 6 150±2.5
LD-207/9 6 150±2.5
LD-205/6 6 150±2.5
LD-208 6 150±2.5
LD-002 6.5 165±2.5
LD-003 6.5 165±2.5
LD-102 6.5 165±2.5
LD-207B 6.5 165±2.5
LD-207/9 6.5 165±2.5
LD-205/6 6.5 165±2.5
LD-208 6.5 165±2.5
LD-002 8 200±3.0
LD-003 8 200±3.0
LD-102 8 200±3.0
LD-207B 8 200±3.0
LD-207/9 8 200±3.0
LD-205/6 8 200±3.0
LD-208 8 200±3.0
LD-209 10 250±3.0
LD-209 12 300±3.0

Working Pressure:
2 Bar,3 Bar,4 Bar,5 Bar,6 Bar,8 Bar,10 Bar

Construction:
Tube:Blue plasticized PVC resin smooth surface
Reinforcement: High tensile synthetic fabric
Cover: Blue plasticized PVC resin smooth surface

Feature:
1.Lightweight, tough,durable and long service life
2.Rolls up flat is easy move, retrieval and handle
3.Resistance to abrasion, corrosion,heat and aging
4.Easy extend to longer length with hose coupling and clamp

Application:
1.Designed for discharge of water. Irrigation, drainage,sprinkle and water supply applications on farmland and construction site
2.Also suitable for light duty dewatering applications and water washdown

Customer Service:
1.Tube/Cover color:Blue,Red,Brown,Green,Yellow,and Black cover color are available. Other colors can be customized
2.Stamp: Specification or logo stamp at end of hose free of charge
3.Length:30-100M at custom's option
4.Other wall thickness and weights for each meter can be customized
5.Customized card board print
6.Accessory Available:Camlock Hose Coupling,Storz,Pin lug,Jorn Morris Hose Coupling, American,German or British Type Hose Clamp
Package: Shrink film or Card board
Temperature Range: -10 °C +55 °C
