| AC9120 PVC Ball Valve |
| | UPVC Ball Valve:
With Socket and Thread End
|
|
Size:1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"
Standard: DIN, BS, ANSI, CNS, JIS
Fits schedule 40 and 80 pipe, Color: white, grey, blue
1) Healthy and non-toxic, free of stain and scale
2) High temperature resistance (maximum water temperature is up to
90℃ and high pressure resistance is over 5MPa)
3) Hot welding connection adopted, making pipes and fittings into whole, leakage effectively prevented
4) Excellent heat insulation property from minimum thermal conductivity (only one hundredth of that of metal pipes)
5) Light weight (approximately one eighth of that of metal pipes), easy to handle and transport |
 |
|
6) Smooth inner wall, reducing pressure loss and increasing flow speed
7) Low noise, reduced by 40% compared to galvanized steel pipes
8) Soft colors and excellent design, suitable for installation either exposed or hidden
9) Wonderful ability in chemical corrosion resistance
10) Easy and fast installation, making cost minimized
11) Over 50 years of service life under normal condition
12) Working temperature: 0-60°C |

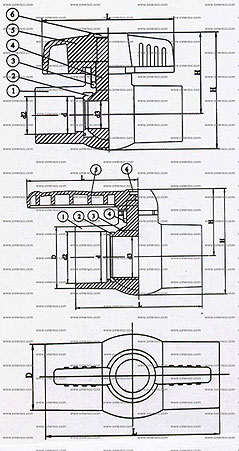

NO |
PART |
MATERIAL |
QTY |
1 |
BODY |
U-PVC,C-PVC,ABS |
1 |
2 |
SEAT SEAL |
TPE,TPV |
2 |
3 |
STEM O-RING |
EPDM,FPM,NBR |
1 |
4 |
BALL |
UPVC,ABS,PP |
1 |
5 |
HANDLE |
ABS,PVC,PP |
1 |
6 |
CAP |
ABS,PVC |
1 |
|
| |
SIZE NOM |
15mm |
20mm |
25mm |
32mm |
40mm |
50mm |
65mm |
80mm |
100mm |
(1/2") |
(3/4") |
(1") |
(1-1/4") |
(1-1/2") |
(2") |
(2-1/2") |
(3") |
(4") |
JIS |
d1 |
21.7 |
25.7 |
31.67 |
37.57 |
47.54 |
59.44 |
75.87 |
88.83 |
113.98 |
d2 |
22.3 |
26.3 |
32.33 |
38.43 |
48.46 |
60.56 |
76.6 |
89.6 |
114.7 |
BS |
d1 |
21.3 |
26.7 |
33.5 |
42.2 |
48.2 |
60.3 |
75.1 |
88.8 |
114.2 |
d2 |
21.5 |
26.9 |
33.7 |
42.4 |
48.4 |
60.5 |
75.3 |
89.1 |
114.5 |
ANSI |
d1 |
21.23 |
26.57 |
33.27 |
42.04 |
48.11 |
60.17 |
72.85 |
88.7 |
114.07 |
d2 |
21.54 |
26.87 |
33.65 |
42.42 |
48.56 |
60.63 |
73.38 |
89.31 |
114.76 |
DIN |
d1 |
20 |
25 |
32 |
40 |
50 |
63 |
75 |
90 |
110 |
d2 |
20 |
25 |
32 |
40 |
50 |
63 |
75 |
90 |
110 |
d3 |
|
15 |
20 |
25 |
30 |
34 |
45 |
60 |
77 |
97 |
D |
A |
30 |
35 |
43 |
52 |
62 |
72 |
90 |
107.5 |
129 |
B |
31.5 |
37 |
44 |
54.5 |
62 |
76 |
90 |
107.5 |
135 |
L |
A |
78 |
88 |
102 |
111 |
127 |
142 |
179 |
243 |
285 |
B |
82.5 |
96 |
105.5 |
119 |
127 |
150 |
179 |
243 |
285 |
L1 |
|
69 |
77 |
92 |
104 |
114 |
134 |
160 |
176 |
196 |
I |
|
21 |
24 |
28 |
28 |
32 |
37 |
45 |
68 |
80 |
H1 |
|
44 |
51 |
87 |
63 |
70 |
82 |
99 |
113 |
132 |
H2 |
|
62 |
76 |
59 |
96 |
108 |
129 |
152 |
182 |
209 |
|
| |
|
|
