    Inlay Drip Irrigation Tape

Inlay Dripper Style Irrigation Drip Tape

1.Main Technical Data
Diameter:12cm,16cm
Wall thickness:0.15-0.6mm
Distance between dripping head:100-2000mm
Working Pressure:0.08 Mpa-0.22 Mpa
Flux:1.2L/H-2.1L/H

2.Scope of application:
Ideal for greenhouse,industrial crops,vegetables,fruit trees,industrial trees and so on!

3.Brief Introduction:
Produced by post forming technics.
Up-to-date wide and long runners,fully turbulence and resistance to clogging.
Advanced material is used to prevent it from being blocked and aged.
Less water-head loss along the travel of water,longer spread length.
The price of our product is much lower because of its fast production speed.
The product can be widely used,kinds of specification can meet the needs of different clients.
The strength of anti-machine is good,and it is easy to be laid down by mechanization.
It is light,and easy to arrange and to collect in the field.

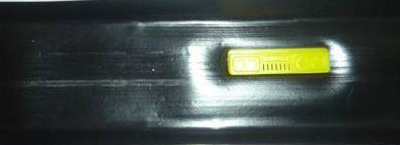

Inlay Drip Irrigation Tape with Blue Lines

1.Main Technical Data
Diameter:6cm,12cm,16cm,20cm
Wall thickness:0.15-0.6mm
Distance between dripping head:100mm,150mm,20mm,250mm,300mm,330mm,500mm
Working Pressure:0.01 Mpa-0.1 Mpa
Flux:1.2L/H-3.5L/H

2.Scope of application:
Ideal for greenhouse,vegetable gardens,fruit trees,economic forest,land industrial crops,etc.

3.Brief Introduction:
National patent product.(Patent number:ZL01270001.0)
The product is the most recently developed product in domestic.
It is exclusively produced by our company,great in quality and reasonable in price.
High-fidelity mold degrade the making deviation much smaller!
The product has inimitable drip irrigation performance among the same products.
There are many filtering holes in the entrance,so it has strong anti-stops.
The long turbulent flowing channel make the level of average water leakage good.
The mark of paticular bar facilitate the identifying when installing.
One time extruding and welding,no seam,no raw edges,reducing the possibility of Cracking as heavy pressure.
The different diameters and wall thickness are suitable for the different farmland.
It has certain compensation,longer spread length.The flow rate and distance between drippers are adjustable.
Drilling holes by machine to form water slit gate to prevent root hair or insects entering into flow passage,stopping drippers.

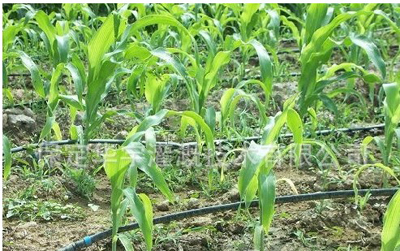

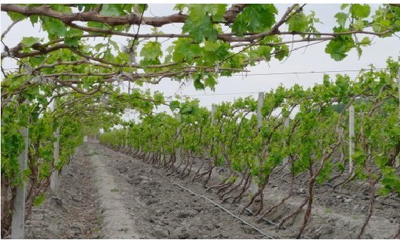

Picture of the Application:
