AC9136 UPVC SWING CHECK VALVE

• Size: 3/4’’-6’’(DN20-DN150)
• Standard: DIN,ANSI,JIS,BS,GB
• Material: UPVC,CPVC,PPR/FRPP
• Working pressure:1.0mpa/10bar/150psi

       Caution:

• Arrow mark indicate the flow of fluid
• When in horizontal installation,make sure the arrow mark on the top side

No.

Parts

Material

QTY

1

Low-body

UPVC/CPVC/PPH/PPG/ABS

1

2

Seal nut

EPDM/FPM

1

3

Extra weight

STEEL

3

4

Flap

UPVC/CPVC/PPH/PPG/ABS

1

5

Seal ring

EPDM/FPM

1

6

Bolt

STAINLESS STEEL 304

4-12

7

Cap

UPVC/CPVC/PPH/PPG/ABS

2

8

Up-body

UPVC/CPVC/PPH/PPG/ABS

1

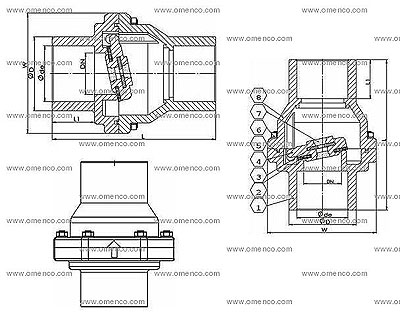

Size

DN

DIN/de

D

L1

L

W

3/4''

20

25

36

27

98

64

1''

25

32

46

27

107

75

1 1/4''

32

40

56

34

130

110

1 1/2''

40

50

66

38

147

120

2''

50

63

81

39

162

140

2 1/2''

65

75

95

45

198

148

3''

80

90

112

55

236

163

4''

100

110

132

75

305

204

6''

150

160

194

90

379

282
