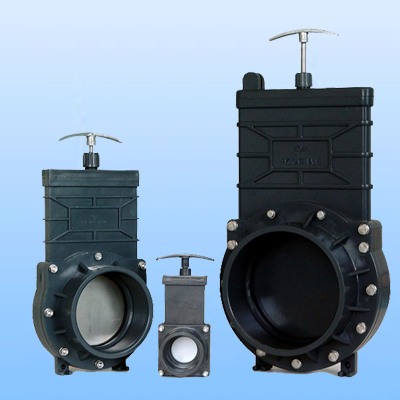

| AC9137 PVC Gate Valve |
Description:
- Size: 1 1/4’’-6’’(DN32-DN150)
- Standard: DIN,ANSI,BS
- Material: UPVC
- Working Pressure: 0.35mpa
- Widely used in aquaculture,irrigation
|
 |
|
| Materials of Construction |
No. |
Parts |
Material |
1 |
Faucet |
UPVC |
2 |
Valve Gate |
PP, 1Cr13 |
3 |
Seat |
EPDM,NBR |
4 |
Bolt |
A2 |
5 |
Stem |
1Cr13 |
6 |
Body |
UPVC |
7 |
Cap |
UPVC |
8 |
O-Ring |
EPDM,NBR |
9 |
Bushing |
UPVC |
10 |
Key |
UPVC |
11 |
Handle |
ABS,ZL106 |
|
| Dimension |
Size |
A |
B |
DN |
Φ |
L |
H |
PN |
mm(in) |
(Mpa) |
1 1/4'' |
143 |
115 |
32 |
40 |
68 |
57 |
0.35 |
1 1/2'' |
170 |
136 |
40 |
50 |
100 |
74 |
0.35 |
2'' |
207 |
163 |
50 |
63 |
108 |
86 |
0.35 |
2 1/2'' |
240 |
190 |
65 |
75 |
125 |
104 |
0.35 |
3'' |
305 |
222 |
80 |
90 |
128 |
150 |
0.35 |
4'' |
350 |
260 |
100 |
110 |
132 |
170 |
0.35 |
6'' |
505 |
380 |
150 |
160 |
172 |
242 |
0.35 |
|
|
|
