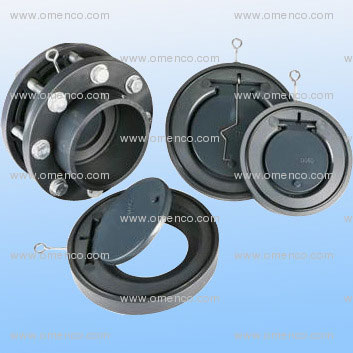

| AC9139 PVC Water Check Valve |
 |
 |
| |
Description:
- Size: 6’’-12’’(DN150-DN300)
- Standard: DIN
- Material: UPVC,CPVC
- Working pressure:0.6 -1.0mpa/6-10bar/100-150psi
Caution:
- Arrow mark indicates the flow of fluid
- When in horizontal installation,make sure the stationary ring on the top side.
- Do not install the valve at a distance lower than 5×D of pump out
- DIN flange only
|
|
| |

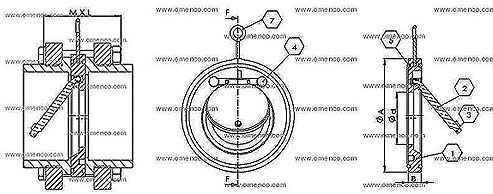

No. |
Parts |
Material |
QTY |
1 |
Body |
UPVC/CPVC |
1 |
2 |
Flap |
UPVC/CPVC |
1 |
3 |
O-ring |
EPDM/FPM |
1 |
4 |
Cap |
UPVC/CPVC |
2 |
5 |
O-ring |
EPDM/FPM |
2 |
6 |
Spring |
STAINLESS STEEL 304 |
1 |
7 |
Stationary ring |
Steel |
1 |
|
| |
Size |
DN |
D |
PN(Mpa) |
A |
B |
d |
Flange |
Bolt MxL |
6'' |
150 |
160 |
1 |
218 |
26 |
105 |
DN150 |
20x130 |
8'' |
200 |
200 |
0.6 |
273 |
34 |
126 |
DN200 |
20x140 |
8'' |
200 |
225 |
0.6 |
273 |
34 |
140 |
DN200 |
20x140 |
10'' |
250 |
250 |
0.6 |
330 |
40 |
170 |
DN250 |
22x160 |
12'' |
300 |
315 |
0.6 |
380 |
47 |
220 |
DN300 |
22x180 |
|
|
|
