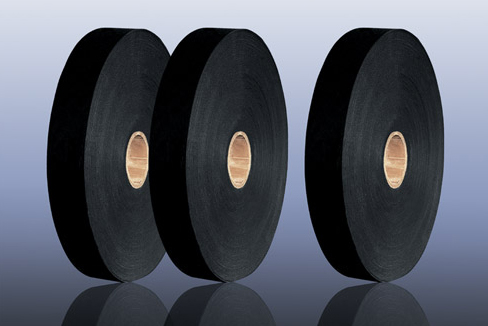

buffering semi-conductive water-proof tape

Application
buffering semi-conductive water-proof tape is used for water-proof layer inside the metal sheath of high or extra high voltage cable.
specification and technical parameter is as follows:
item omen130 omen150 omen200 omen250
thickness(mm) 1.3±0.5 1.5±0.5 2.0±0.5 2.5±0.5
unit weight(g/m2) 200±40 240±40 280±40 320±40
tensile strength(N/cm) ≥40 ≥40 ≥40 ≥40
elongation(%) ≥12 ≥12 ≥12 ≥12
expansion velocity (mm/1st min) ≥8 ≥8 ≥8 ≥8
expansion height(mm/3min) ≥12 ≥12 ≥12 ≥12
surface resistance(Ω) < 1500 < 1500 < 1500 < 1500
volume resistance(Ω.cm) < 1×106 < 1×106 < 1×106 < 1×106
instant stability(°C) 230 230 230 230
long-term stability(°C) 90 90 90 90
water percentage(%) < 9 < 9 < 9 < 9

Feature:
1,it has characteristic of strong moisture absorption,big expansion rate and quick expansion velocity.
2,small resistance can make cable has semi-conductivity and weaken the electrical field strength effectively.
3,high mechanical strength makes it easy to be wrapped and longitudinal wrapped for kinds of cables.
4,it is heat-resistant and can bear high instant temperature.cable with this product can keep stable performance at instant high temperature.
storage
it should be stored in dry house,kept away from source of fire and not to be exposed to the sunshine.the shelf life is 6 months after the manufacturing date.also it should avoid moisture and mechanical damage during storage and transportation.
