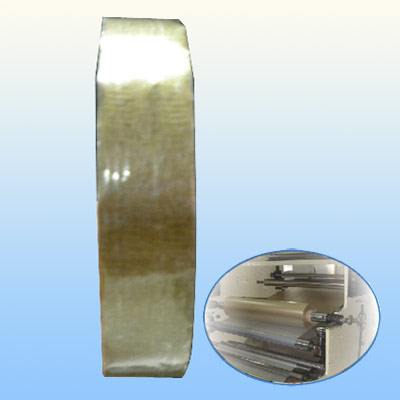

Electrical Insulation Mica Tape for transformers

This mica tape is built up with mica as base material and electrical-use alkali-free glass-cloth, polyester or polyemide film as reinforcing material, bonded by binder and formed a tape-like insulation material. It is perfectly flexible under the normal temperature and after reeling on the coil of electrical machinery, may be solidified and has a thin insulation thickness and excellent electrical and mechanical strength.

Type Designation	Normal thickness (mm)	Mica content (%)	Binder content(%)	Volatile (%)	Dielectric strength (MV/m)	Tensile strenght (N/10mm)
Epoxider glass polyester film mica paper tape	0.14	≥37	26~34	≤4.0	≥40	≥65
Silicone Glass Polymide mica paper tape	0.14	≥45	8~18	≤2.0	≥50	≥65
Epoxider glass on both surfaces polyester film mica paper tape	0.11	≥45	16~24	≤2.0	≥50	≥65
Phenol aldehyde Epoxider less adhesion material on one surface polyimide mica paper tape	0.13	≥70	≤10	≤2.0	≥40	≥30
Phenol aldehyde Epoxider glass polyimide mica paper tape	0.14	≥37	25~32	≤4.0	≥40	≥65
Epoxider glass on both surfaces polyester film mica paper tape	0.18	≥40	24~30	≤3.0	≥65	≥80
Epoxide-TMA glass polyester film mica paper tape	0.14	≥38	28~35	≤2.0	≥55	≥65
Epoxider less adhesion material on one polyester film mica paper tape	0.09	≥55	8~14	≤2.0	≥50	≥35
Phenol aldehyde Epoxider glass polyester mica paper tape	0.12	≥45	29~39	≤3.0	≥35	≥65
Phenol aldehyde Epoxider on both surfaces polyester film mica paper tape	0.10	≥50	5~12	≤1.2	≥65	≥40

This mica tape is built up with mica paper as base material, bonded together by a suitable binder with electrical-use alkalifree glass-cloth as the reinforcing material on one or both its surfaces, forming a tape-like insulation. It is perfectly flexible under the normal temperature and after reeling on the coil of electrical machinery, may be solidifid and has a excellent electrical and mechanical strength.

Type Designation	Normal thickness (mm)	Mica content(%)	Binder content(%)	Volatile (%)	Dielectric strength (MV/m)	Tensile strenght (N/10mm)
TMA-Epoxide glass mica paper tape	0.14	≥45	17~25	≤3.0	≥25	≥100
TMA-Epoxide glass polyester film mica paper tape	0.14	≥40	17~25	≤3	≥60	≥65
Epoxide glass mica paper tape	0.14	≥37	≥34	≤2.0	≥35	≥100
Epoxide glass mica paper tape	0.14	≥37	≥36	≤3.0	≥24	≥80
TMA-Epoxide glass mica paper tape	0.14	≥37	≥36	≤2.0	≥35	≥100
TMA-Epoxide glass mica paper tape	0.20	≥37	≥36	≤2.0	≥35	≥100
Phenol aldehyde Epoxide glass mica paper tape	0.14	≥37	≥36	≤2.0	≥24	≥80
Phenol aldehyde Epoxide glass mica paper tape	0.11	≥45	≤32	≤3.0	≥24	≥80
Silicone glass mica paper tape	0.10	≥40	15~30	≤2.0	≥16	≥80
	0.13
	0.16
Silicone glass mica paper tape	0.14	≥37	20~40	≤2.0	≥16	≥80
Silicone glass mica paper tape	0.17	≥37	20~40	≤2.0	≥16	≥80
PDPO glass mica paper tape	0.11	≥45	20~30	≤3.0	≥35	≥80
PDPO glass mica paper tape	0.14	≥40	30~40	≤3.0	≥35	≥80
DPO glass polyimide film mica paper tape	0.14	≥37	24~32	≤4	≥50	≥80
