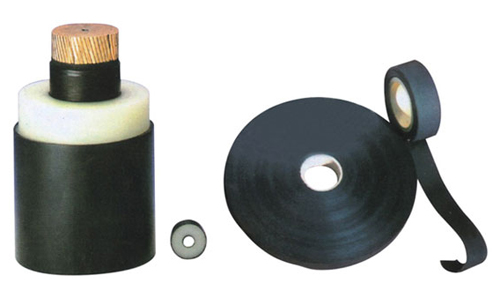

semi-conductive nylon tape

semi-conductive nylon tape


Application
it is used to the high or extra high voltage cables for separation and shielding.
specification and main performance value

item omen10 omen12 omen14
thickness(mm) 0.10±0.02 0.12±0.02 0.14±0.02
unit weight(g/m2) 90±10 100±10 110±10
tensile strength(N/cm) ≥120 ≥140 ≥150
elongation(%) ≥25 ≥40 ≥40
surface resistance(Ω) < 1000 < 1000 < 1000
volume resistance(Ω.cm) < 1×105 < 1×105 < 1×105
instant stability(°C) 210 210 210
long-term stability(°C) 145 145 145

Feature:
1,small resistance can make cable has semi-conductivity and weaken the electrical field strength effectively.
2,high mechanical strength makes it easy to be wrapped and longitudinal wrapped for kinds of cables.
3,it is heat-resistant and can bear high instant temperature.cable with this product can keep stable performance at instant high temperature.
Storage:
it should be stored in dry house,kept away from source of fire and not to be exposed to the sunshine.the shelf life is 6 months after the manufacturing date.also it should avoid moisture and mechanical damage during storage and transportation.
