| High-conductity thermal Aluminum based copper clad sheet |

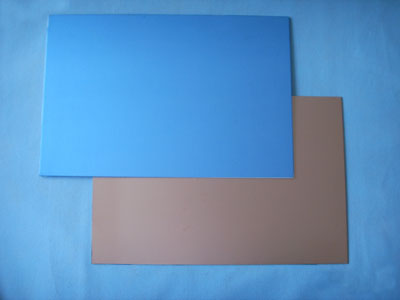

High-conductity thermal Aluminum based copper clad sheet
Advantage:More high-conductivity and longer service time which compared to the normal and mainly be used for the high-power circuits which have high requirements of good heat dissipation.
Application:Hybrid-Power IC;Audio Equipment;Input and output amplifier; Balance amplifier;Audio Amplifier;Preamplife Power Amplifier and so on. Communication equiment; High-frequency increaser; Filter Circuit and Transmitter Circuit.Office automation equipment:Motor Driver and so onMotor Car:Electronics Regulator;Ignition; Power Controller and so on. LED Lighting :High-power LED Lights,LED Curtain Wall and so on.
Thickness:0.8-3.0mm
Copper Foil: 1 μm;2 μm;3 μm;4 μm;6 μm
Size:1000mmx600mm;500mmx600mm
Peel Strength(Min): 1.9 N/mm.
Break-down Voltage(Min): 2.1 KV.
Heat Resistance(Min): 0.8 ℃/W
Dielectric Constant (Max)1MHz:3.8
Surface resistance:5.0x109 M Ω. C-96/35/90 2.0x108MΩ.
Bulkresistance:2.0x109MΩ.m C-96/35/90 5.0x108MΩ.m |
|
| |
